Hikvision 4-Port 60W Gigabit PoE Switch – 1 Cable = Data + Power
Power and connect up to 4 IP cameras with a single cable. Hikvision 60W Gigabit PoE Switch — Plug & Play, metal housing, dedicated uplink port. Built for uncompromising 4K video surveillance.
| 4+1 Ports |
60W PoE budget |
1 Gbps Per port |
24/7 Non-Stop |
✔ Plug & Play | ✔ Gigabit 10/100/1000 | ✔ Metal housing | ✔ Dedicated uplink port
- Description
- Additional information
Description
One cable. Data + Power. Zero external power adapters.

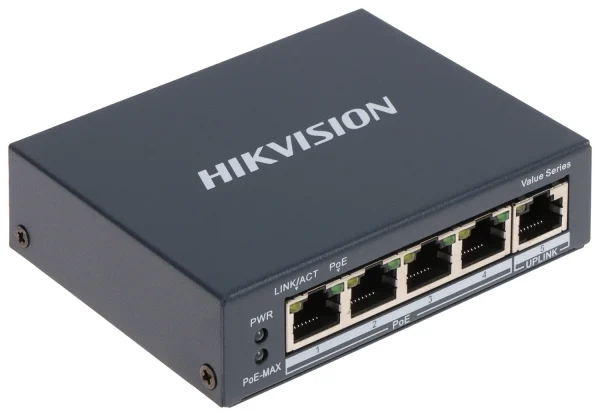

The Hikvision DS-3E0505P-E radically simplifies your video surveillance installations. Plug in your IP cameras with a simple RJ45 cable: the switch sends them data and and electrical power simultaneously. No more running a network cable + a power cable to each camera — one is enough.
⚡ 60W PoE Budget
Comfortably power up to 4 standard cameras simultaneously — including those with advanced night vision or built-in heaters. The 60W budget is distributed intelligently among the active ports.
Full Gigabit Speed
All ports run at 10/100/1000 Mbps. Essential for 8MP (4K) cameras and PTZ domes generating heavy video streams — no bottlenecks on your network.
Total Plug & Play
Zero configuration, zero software. Plug in the cameras and they power up instantly. Installation in minutes, even without advanced networking skills. The switch you plug in and forget.
?️ Professional Metal Housing
Optimal heat dissipation and protection against electromagnetic interference. Built to run 24/7 in professional conditions — in a technical room, network cabinet or wall enclosure.
Dedicated Uplink Port (5th port)
A 5th Gigabit port ( non-PoE ) is provided to connect the switch to your internet gateway, router or NVR recorder — without sacrificing a powered port for your cameras. Your 4 PoE ports stay 100% dedicated to your devices.
Technical specifications
| Reference | DS-3E0505P-E |
| Brand | Hikvision |
| PoE ports | 4 × RJ45 Gigabit (10/100/1000 Mbps) |
| Uplink port | 1 × RJ45 Gigabit (non-PoE) |
| Total PoE budget | 60W |
| PoE standard | IEEE 802.3af / 802.3at |
| Speed | 10/100/1000 Mbps (all ports) |
| Housing | Metal — Passive heat dissipation |
| Configuration | Plug & Play (unmanaged) |
| Operation | 24/7 |
Typical installation
A classic Saint-Martin scenario: a villa with 4 outdoor IP cameras (entrance, pool, parking, garden). The DS-3E0505P-E is installed in the technical closet next to the NVR. A single network cable runs to each camera — it carries the image and and the power. The 5th port connects the switch to the NVR or gateway. Result: a clean, fast installation with no power adapters to manage outdoors.
Residential video surveillance
Small shops & offices
Airbnb rentals / villas
PoE Wi-Fi access points
The Nexus Carib verdict
« The ideal companion to our outdoor NeiX CAT6 FTP cables. Combine the two and your clients get a complete kit — anti-UV cable + PoE power — for a turnkey camera installation. It’s the duo we systematically recommend to Caribbean installers. »
— The Nexus Carib team
Additional information
| Weight | 0,6 kg |
|---|---|
| Dimensions | 11 × 10 × 3 cm |
